INSTALLATION OF AUDIO OUTPUT IN THE STANDARD QUANTUM GX1280X and GX236OS VHF RADIOS
These two radio models have the same internal circuit board.
This radio requires the mod kit board version with its own squelch gate.

Transmit resistor 1 megohm, lead length 1.5" 30 ga white wire.
Receive resistor 470 kohm, lead length 3.0" 30 ga blue wire.
Squelch gate resistor 33 kohm, lead length 1.5" 30 ga yellow wire.
Board power lead length 1.0" 30 ga red wire.

The Racorder mod kit is supplied with a pigtail which has a female inline RCA style connector on the end - this is passed through a .109" (7/64) hole drilled through the rear of the radio, and then soldered to the mod kit board.
The following photos show an installation on a radio which we did in our facility.
PHOTOS:

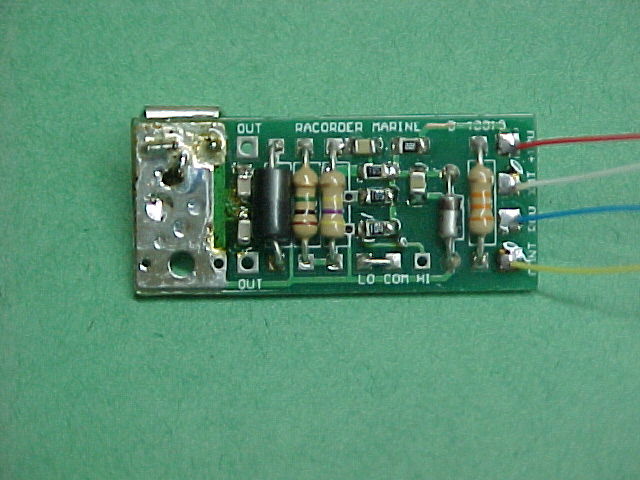

Mod kit on a perf board, component side

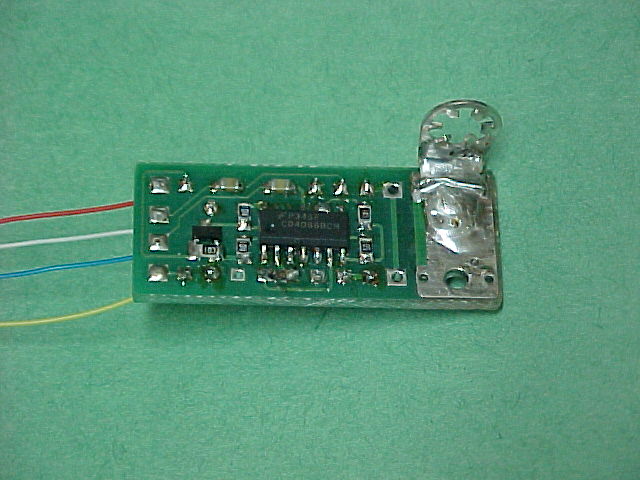

Mod kit on a perf board, solder side

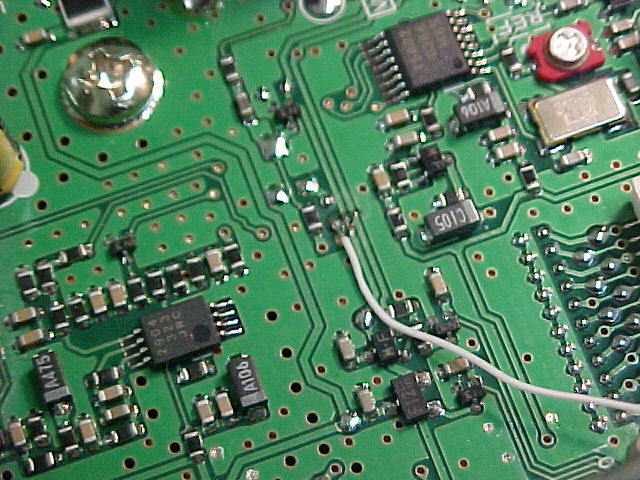

Where to connect the white (transmit audio) wire

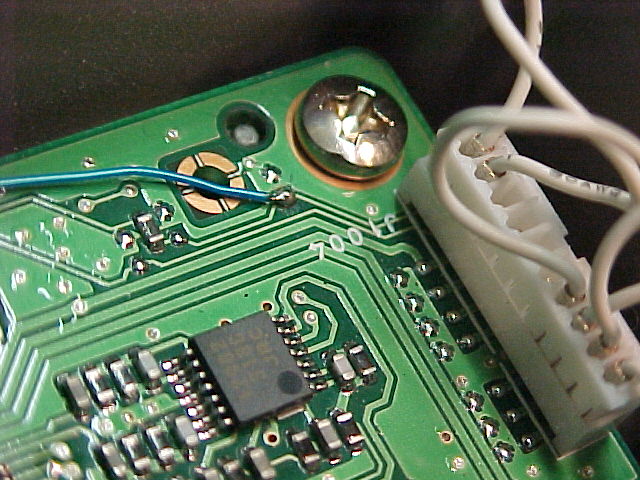

Where to connect the blue (receive audio) wire

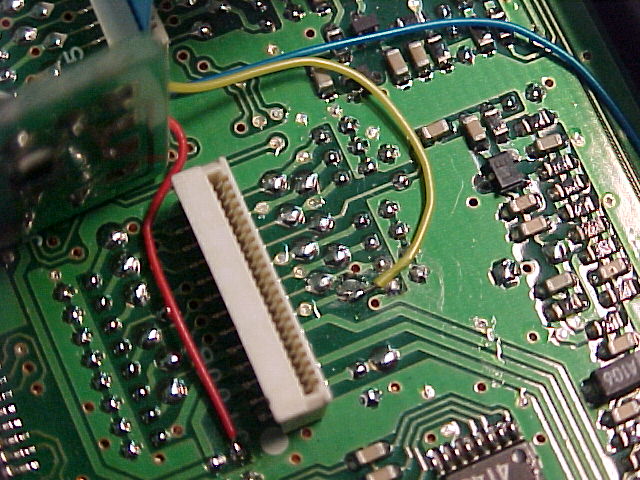

Where to connect the red and yellow wires

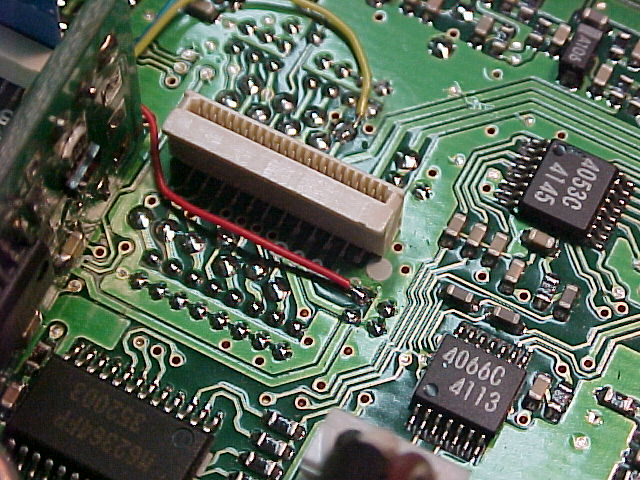

Another view of the red and yellow wire connections

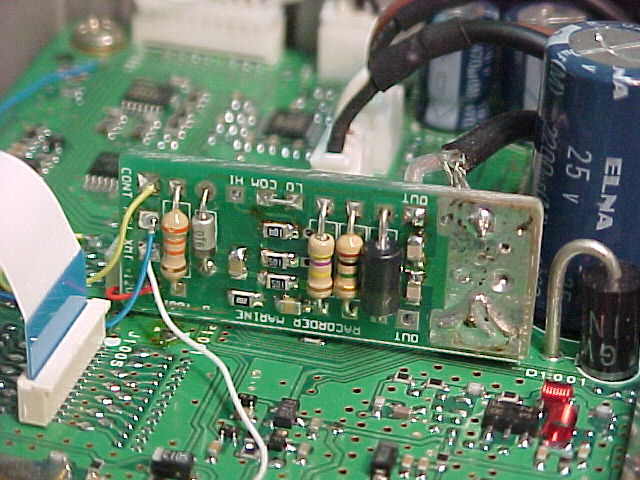

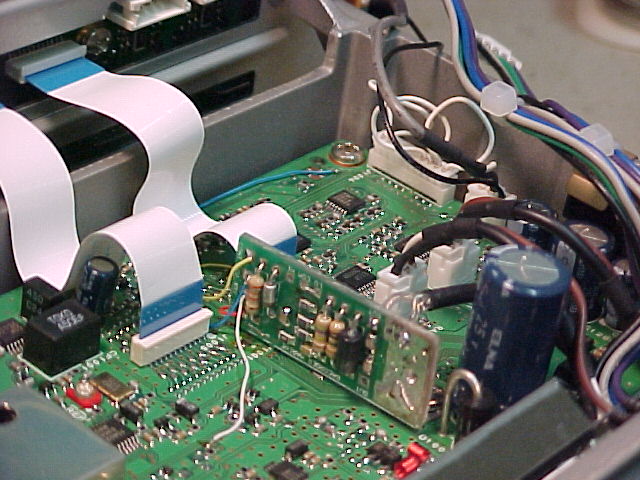

The mounted mod kit

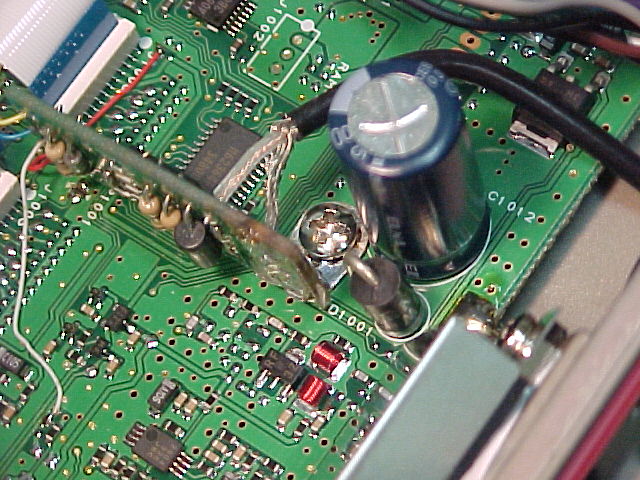

A view of the completed installation

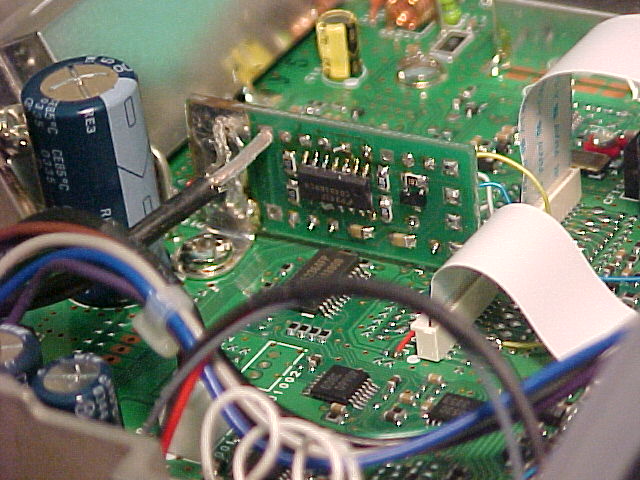

Connection of output lead to mod kit board
Another view of output lead connection to mod kit board

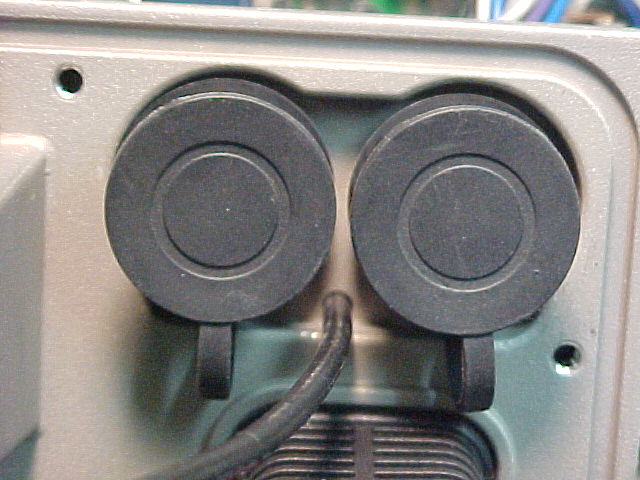

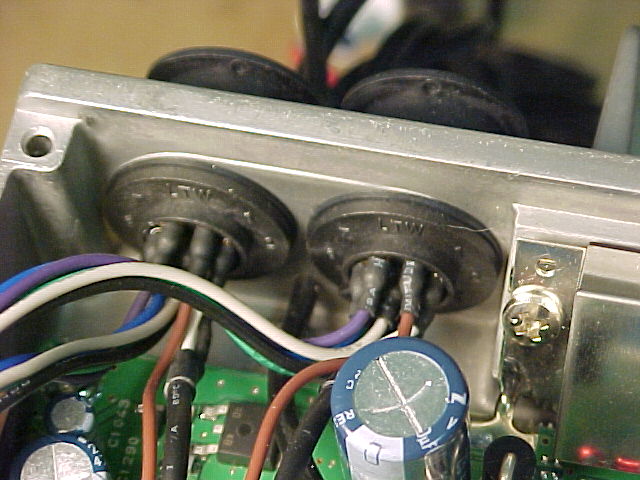

Rear of radio showing output lead
Inside rear corner showing incoming cable
